Our waterjet cutting service is one of the most popular fabrication processes at WDB. We provide waterjet cutting services in Warren Ohio and deliver anywhere in the USA to customers looking for high-quality, custom parts in days not weeks. Our waterjet cutting service is a quick and cost-effective solution to provide highly accurate custom fabricated parts from a variety materials for many applications. Whether you are looking for one piece or multiple units, we can facilitate your waterjet cutting order with a quick response.
Flow Mach 100 Waterjet Cutting System
Our Flow Mach 100 Waterjet Cutting System uses a high-pressure water mixture that shoots through a narrow nozzle into a mixing chamber. This process creates a vacuum bringing a garnet abrasive substance into the water stream where it is precisely directed onto the desired material via a preprogrammed mesurements through the computer numerical control system or CNC. Flow Mach 100 waterjets are a very efficient way to cut a variety of materials such as metals, plastics, composites, foam, and more.
There are plenty of benefits to using a waterjet for fabrication:
- Fast turnaround rates
- Efficient waterjetting process for one part or multiple parts
- A cold cutting process maintains a safe cutting temperature where no heat is imparted into your cut materials
- Ability to maneuver through even the most complex cuts holes, corners, or edges
- Satin Smooth Edge where finished parts are taken directly off of the cutting table, no secondary finishing is required
- Minimal Kerf and high accuracy combined with the ability to cut virtually any material
- Minimizes material waste
WDB’s waterjet cutting services provide a convenient, on-demand, cost-efficient solution for your metal-cutting and other fabrication needs.

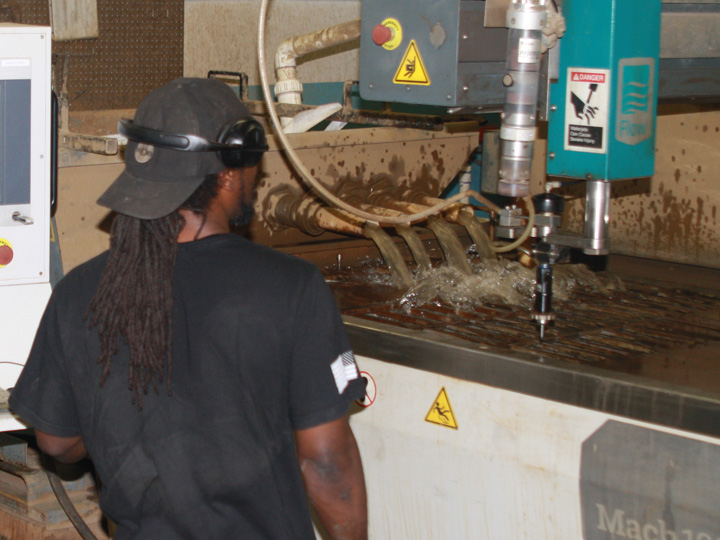

Our Flow Mach 100 Abrasive Waterjet Cutting System
We proudly operate a Flow Mach 100 Abrasive Waterjet. The Flow Mach 100 waterjet is a versatile machine featuring robust cutting capabilities and a programmable z-axis for added flexibility.
This machine has a 50" x 50" x 7" max cutting size with a linear straightness accuracy of 0.005 in/3 and [±0.13 mm/m]. It has repeatability of 0.0025" and cuts with 60,000 psi.
The waterjet is able to cut a variety of materials. Some include, but are not limited to:
Our Specialized Facility Includes:
Mill Size Capacity:
Common materials we cut are:
Many other materials
Plate Size: Up to 50" length and 50" width
Plate Thickness: Up to 7 inch thickness and more if needed
Tolerance: ± 0.005 in/3 [± 0.13 mm/m]
Value Add: Ultra pierce vacuum assist allows us to cut brittle materials such as tile or granite without cracking
Advantages: No heat affected zone Burr free cutting
Production Runs: From prototyping to high volume production
Designing Assistance: Reverse engineering and full CAD assistance

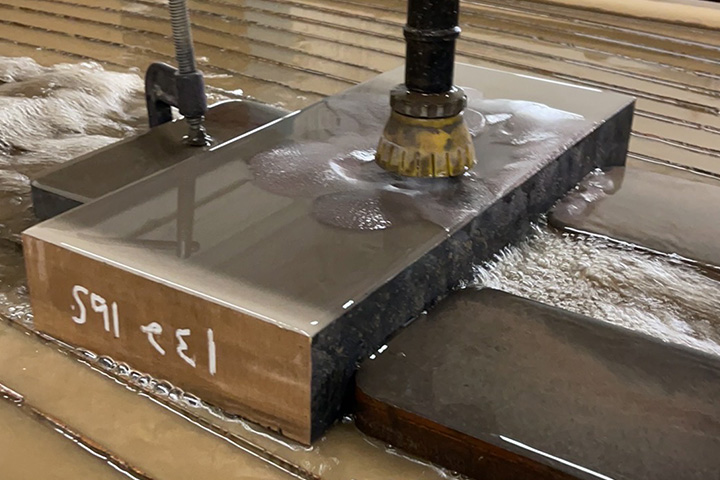

How it works:
Our Waterjet cutting service is one of WDB’s most popular fabrication processes. Our waterjet uses a high-pressure water mixture that shoots through a narrow nozzle into the mixing chamber. This process creates a vacuum that brings an abrasive substance into the water stream, where it is directed towards the desired object for precise cutting. Waterjets are a very efficient way to cut a variety of materials such as metals, plastics, composites, foam, and more. We provide exact cutting on mostly everyting from metals to plastics. From one-off cutting to multiple units, our experienced machinists and modern waterjet equipment can facilitate your company’s needs.
There are plenty of benefits to using our waterjet services for fabrication:
- Fast turnaround rate
- Maintain a safe cutting temperature so the internal structure of the material is stable
- The ability to maneuver through even the most complex cuts including holes, corners, and edges
- We minimize material waste
- One piece or multiple units
- Emergency services available
Warren Design & Build’s waterjet cutting services provide a convenient, on-demand, cost-efficient solution for your fabrication needs.
